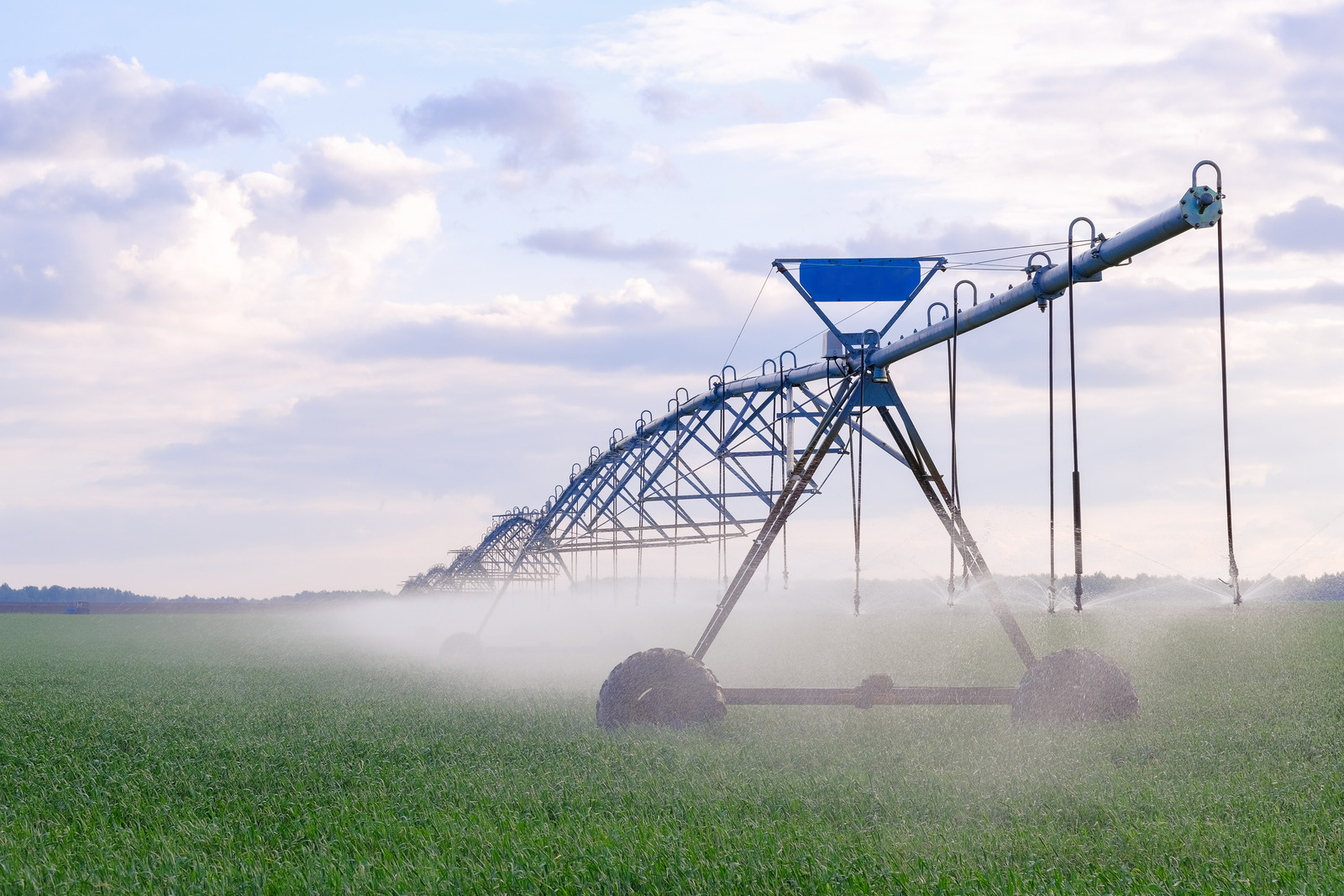

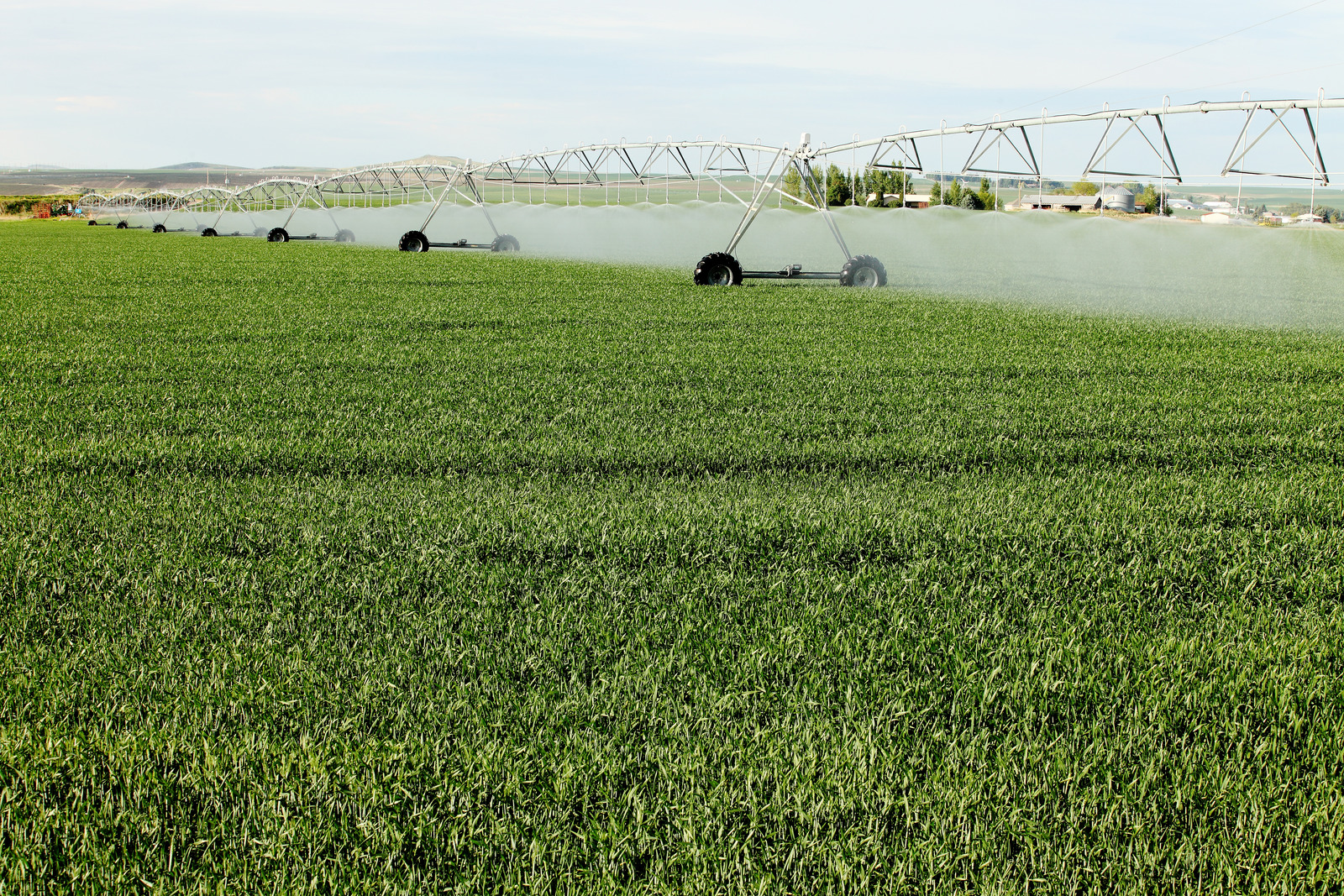

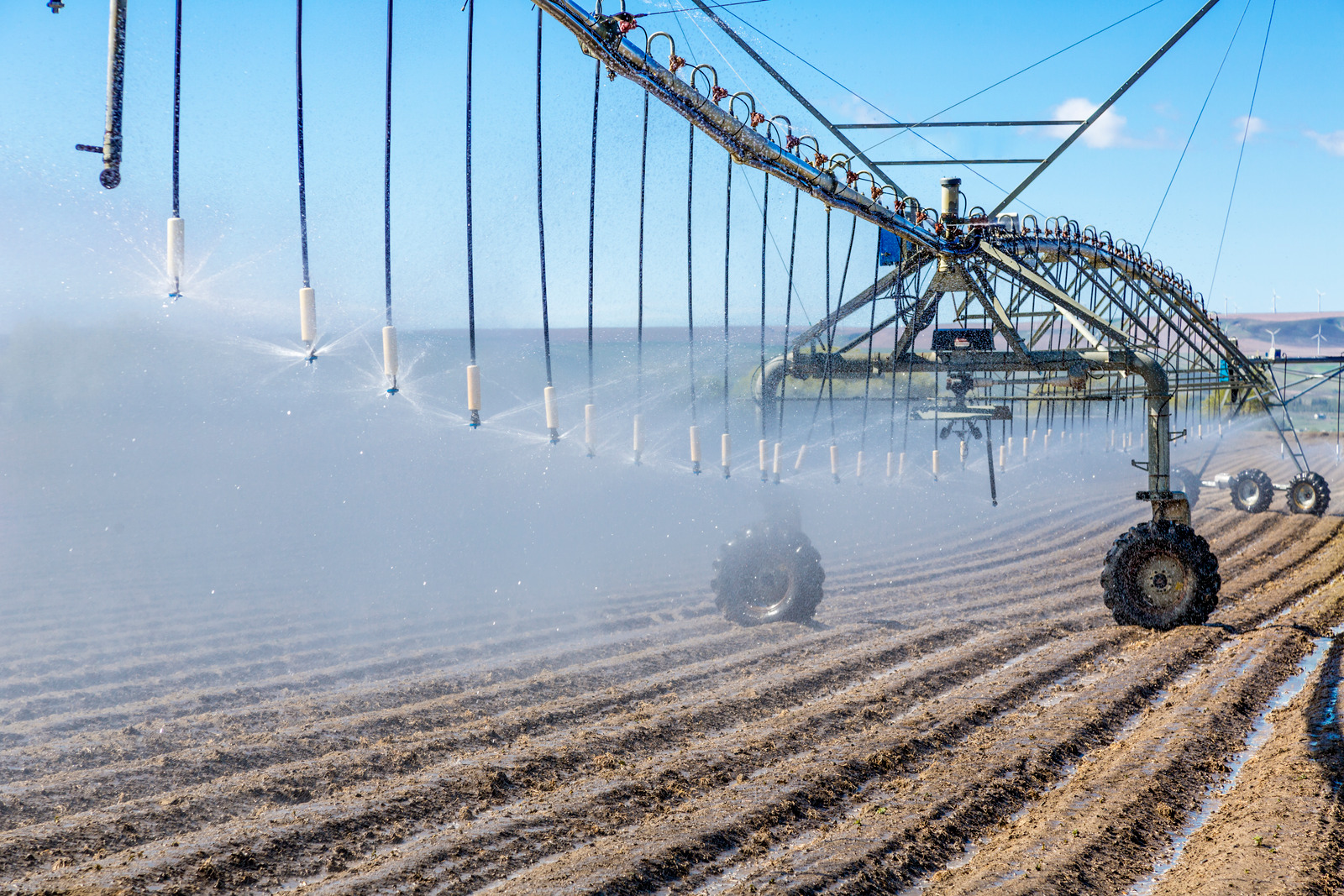

The Center Pivot: Precision, Power, and Purity for Your Farm
Built for durability and high-efficiency across large and rugged terrain, the SHENGU Center Pivot delivers uniform irrigation with smart, automated controls. Maximize your plot utilization and save on energy with our certified systems.
Core System Components & Engineering
The SHENGU Center Pivot is engineered for longevity and performance, combining robust materials with smart operating features.
Pivot Point & Stability
The Pivot Point is the rotation center of the entire sprinkler machine.
- The standard type is fixed with reinforced concrete and installed in the center of the farmland.
- A tow type option fixes the pivot seat on four wheels and includes a traction mechanism for field transfer.
- The collector ring prevents the electrical cable from twisting or breaking as the machine rotates.
- It includes essential parts like anchor bolts, pivot feet, reinforcement legs, a ladder, and a rotating elbow.

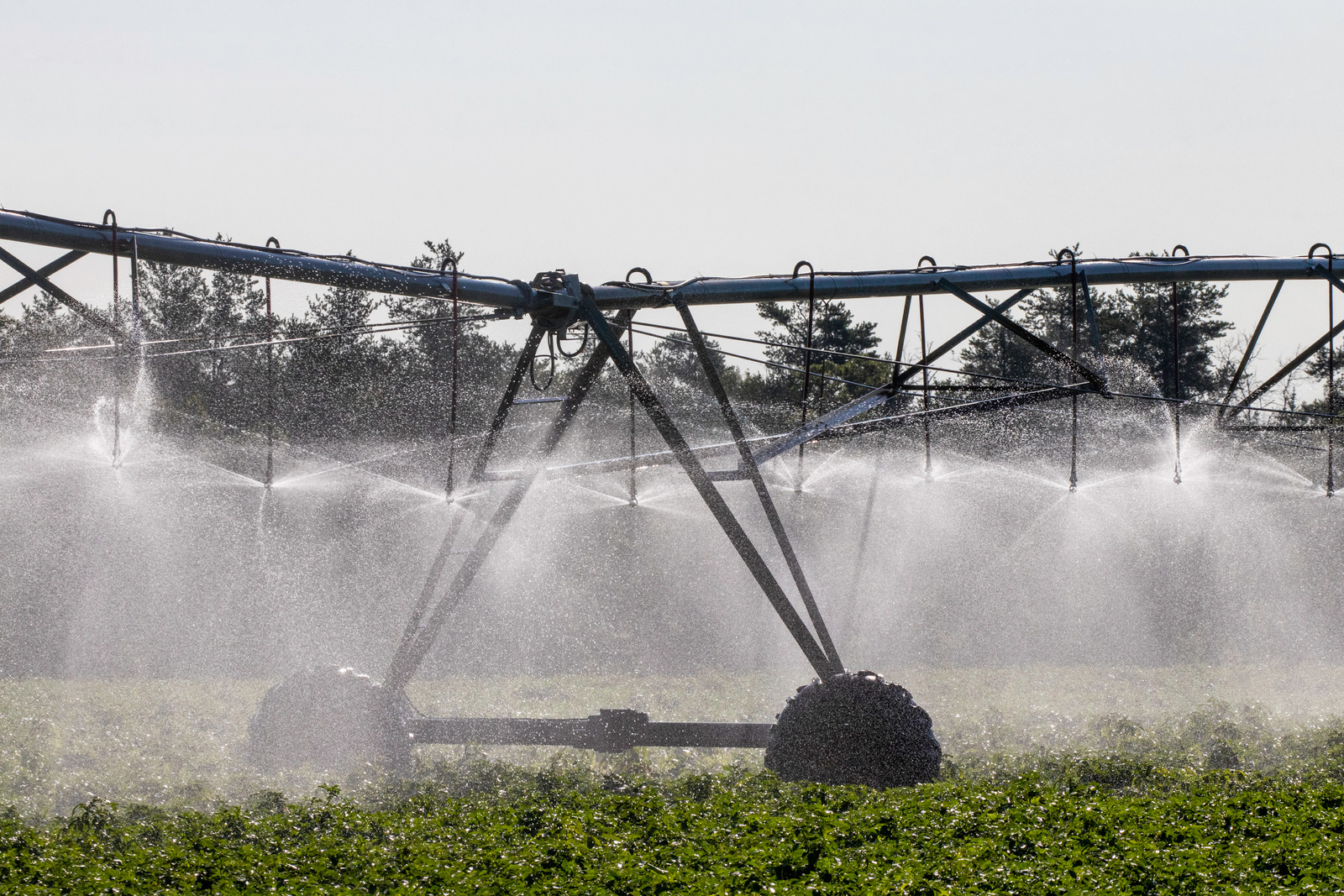

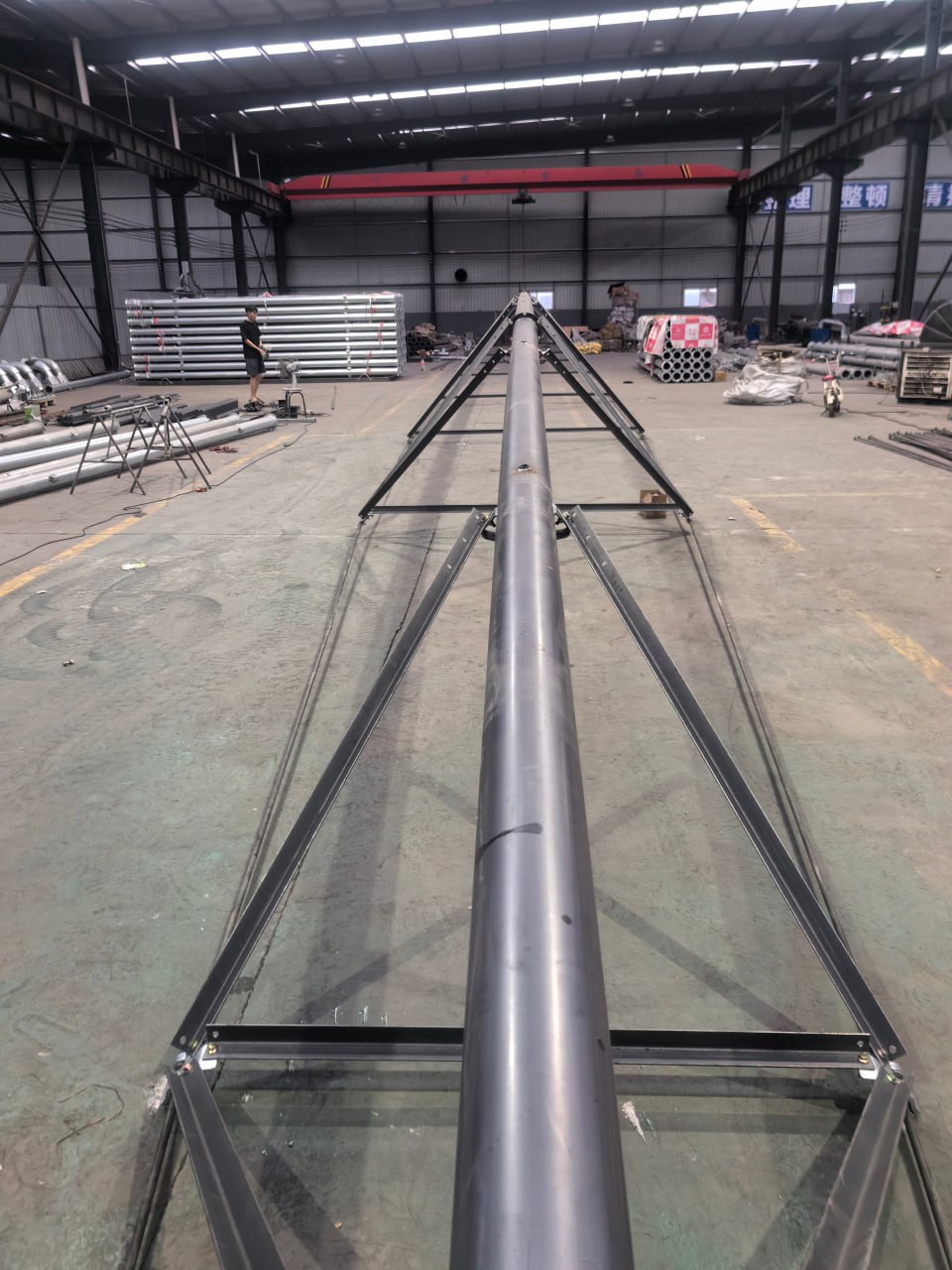

Truss & Tower Structure
The structural integrity ensures stable operation, even on difficult terrain.

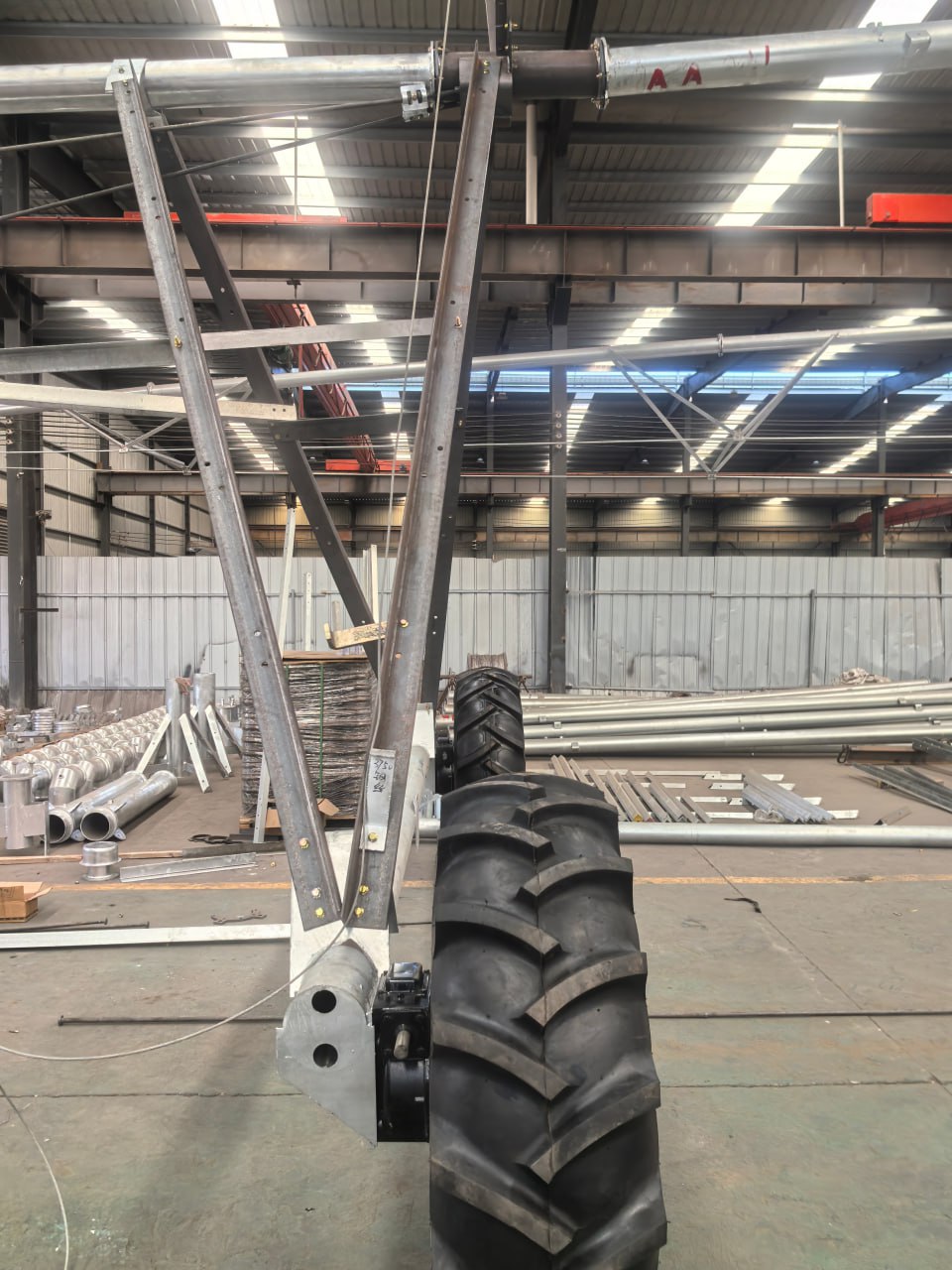

- V-Shaped Towers: The tower is V-shaped, which effectively supports the truss and greatly improves the equipment’s stability.
- Double-Fixed Connections: The connection between the tower legs and pipelines is double fixed, greatly improving operational stability.
- Truss Rod Material: The truss rods are Φ20mm and Φ22mm Manganese Steel, which is forged in one go at both ends, offering high tensile strength, no welds, and no fractures.

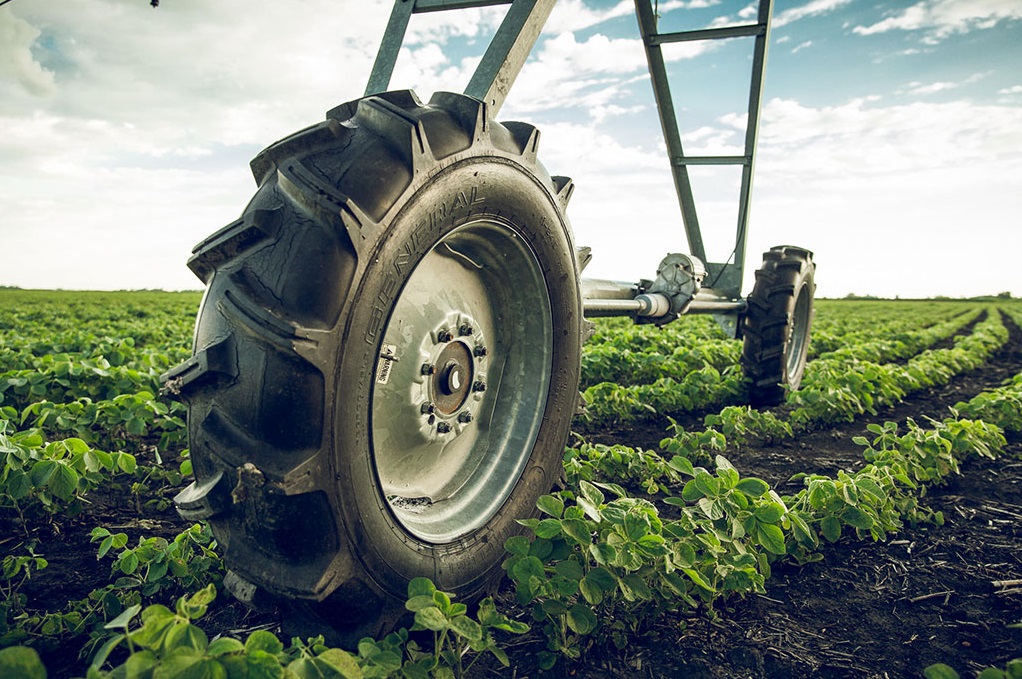

High-Efficiency Drive Train
The drive train is built for longevity and reliability, regardless of environmental challenges.
- Motor: High-strength motors offer proven reliability and irrigation duty with an efficiency of 95%.
- Gearbox: Made of high-strength steel, designed to work efficiently under any conditions.
- Torque Delivery: Each component (motor, gearbox, coupler, shaft, and wheels) is engineered to deliver the torque required by your specific soil and tire combinations.

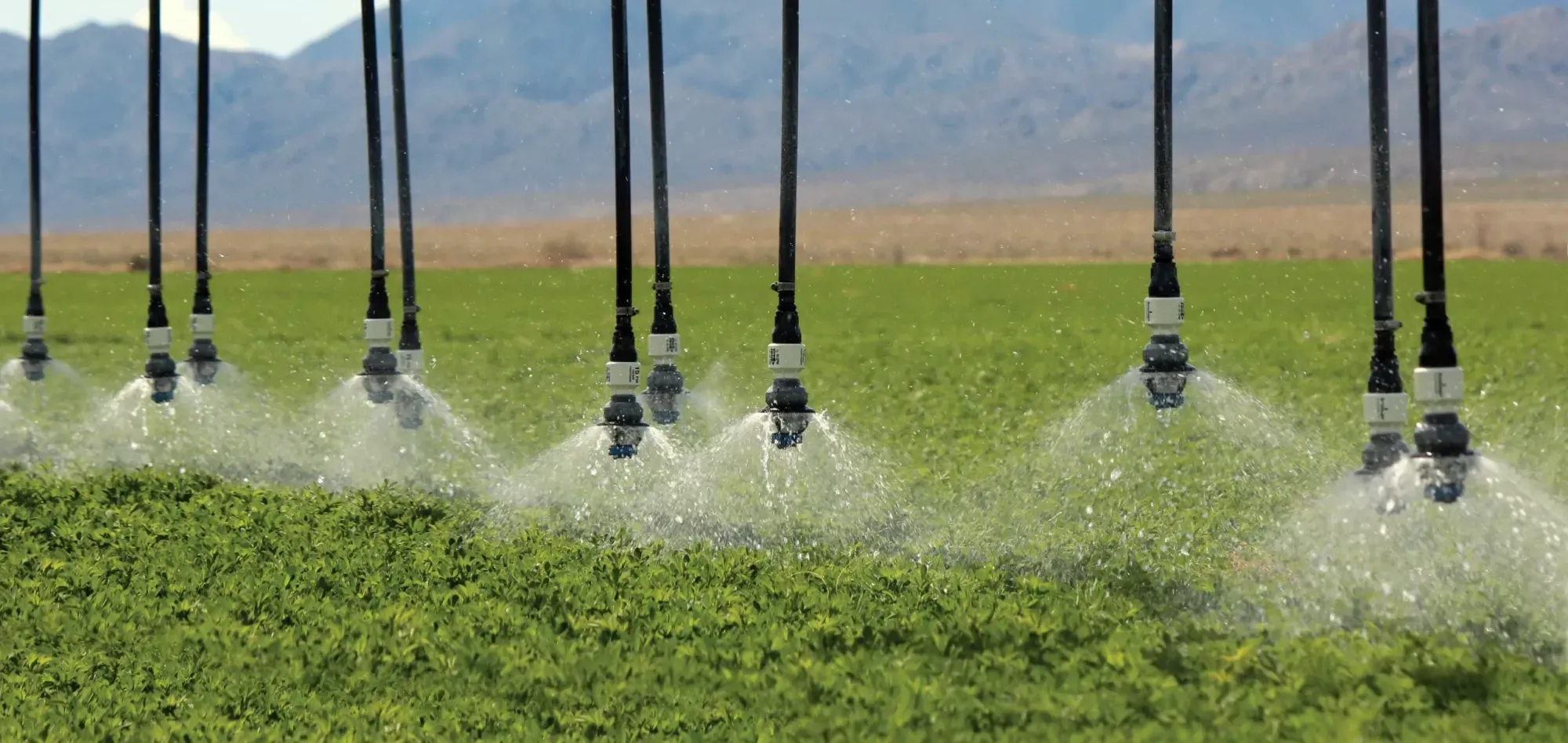

Sprinkler System and Coverage
Our system is designed for uniform irrigation and high water use efficiency.
- Sprinkler Package: Includes a complete package of sprinklers to accommodate any type of terrain, crop, or weather conditions.
- Low-Pressure Operation: Sprinklers operate at low pressure to reduce operating costs and efficiently apply water.
- Water Control: Pressure regulators maintain constant pressure and flow throughout the pivot arm.
- Customized Coverage: We supply a customized irrigation chart, specifically designed to meet your needs.
- Addressing Square Plots: To solve the problem of square plot corners not being sprayed, the irrigation area can be increased by installing devices such as corner and end spray guns (tail guns).
Quality Assurance and Certifications
This information validates the quality of the system components and manufacturing process.
Manufacturing Partner
HANDAN BAOTE FASTENER MANUFACTURING CO.,LTD.
Quality Management System (QMS)
Certified to ISO 9001:2015. This is valid for the manufacturing and sales of metal parts and tools for agricultural sprinkler irrigation pivot equipment.
Occupational Health & Safety (OHS)
Certified to ISO 45001:2018.
Environmental Management System (EMS)
Certified to ISO 14001:2015. This covers the environmental management activities related to manufacturing and sales.

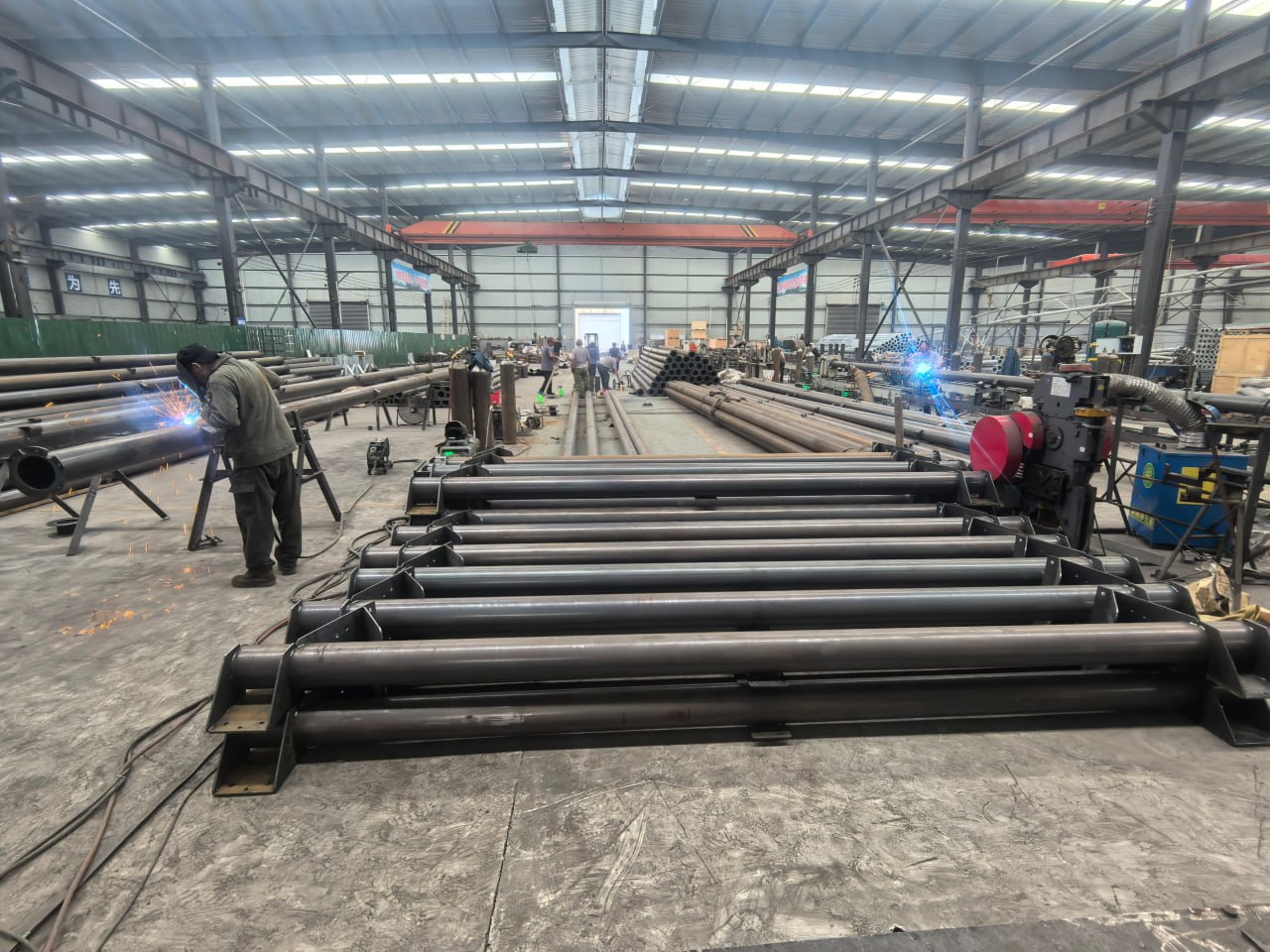

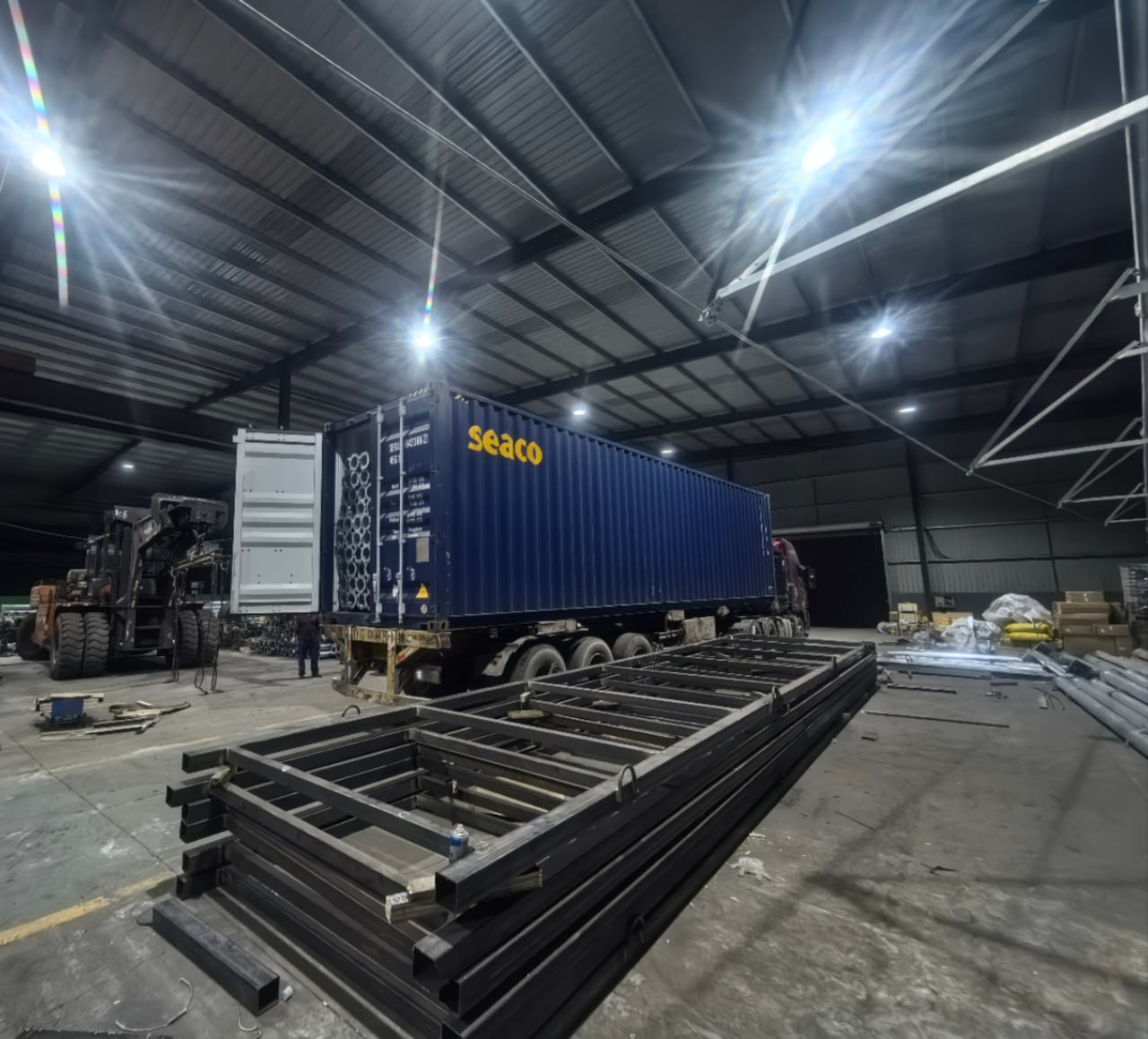

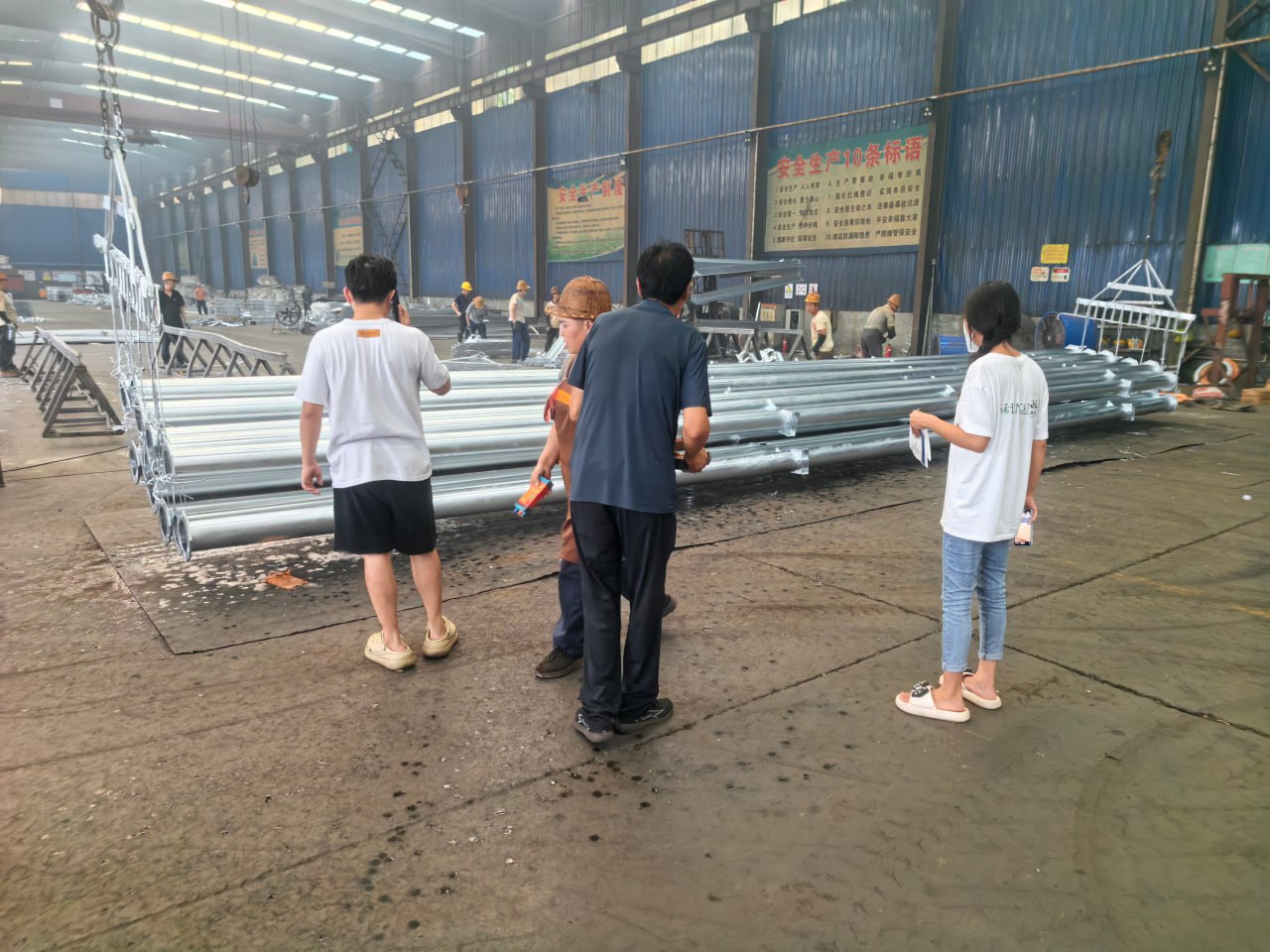

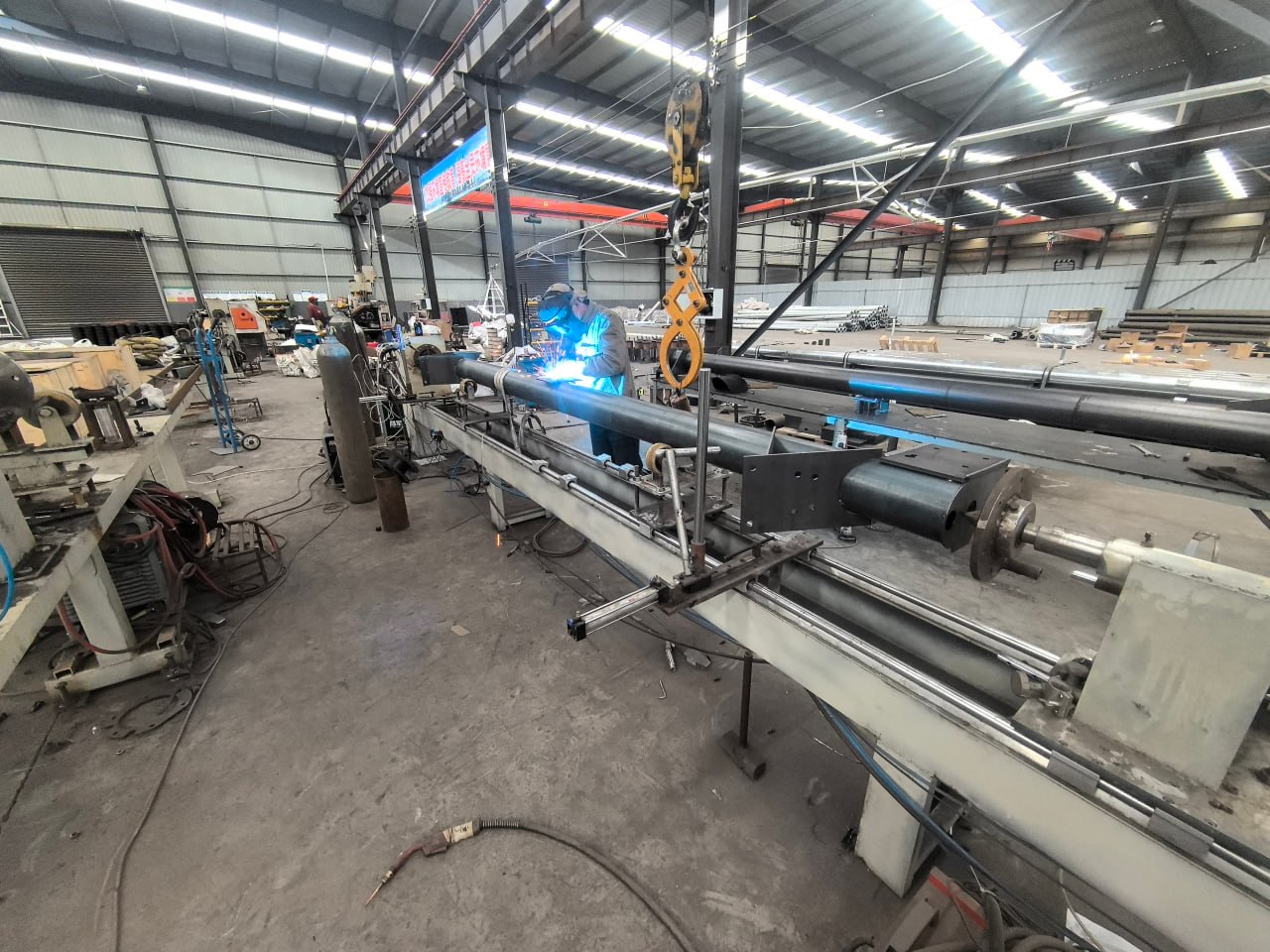

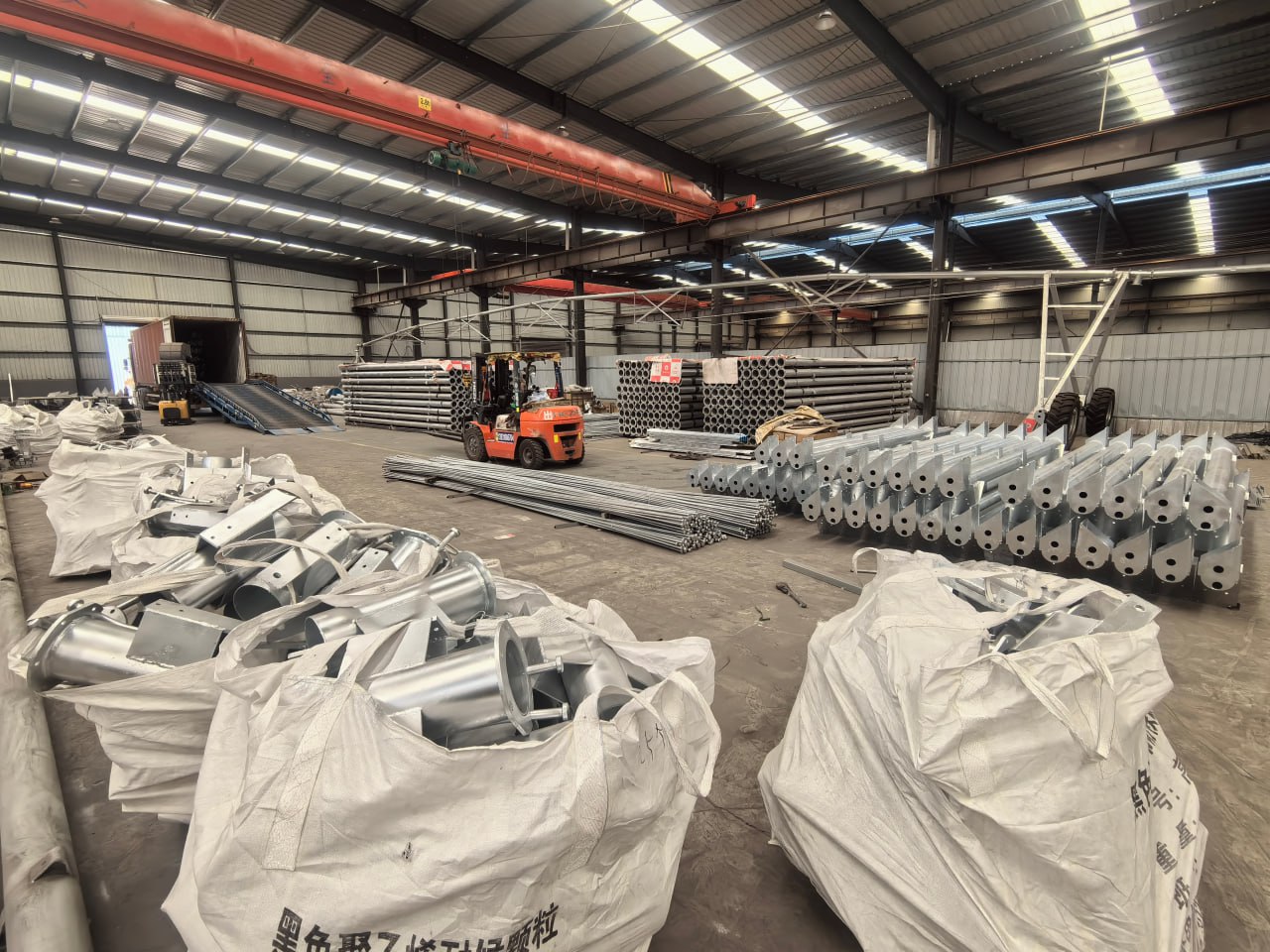

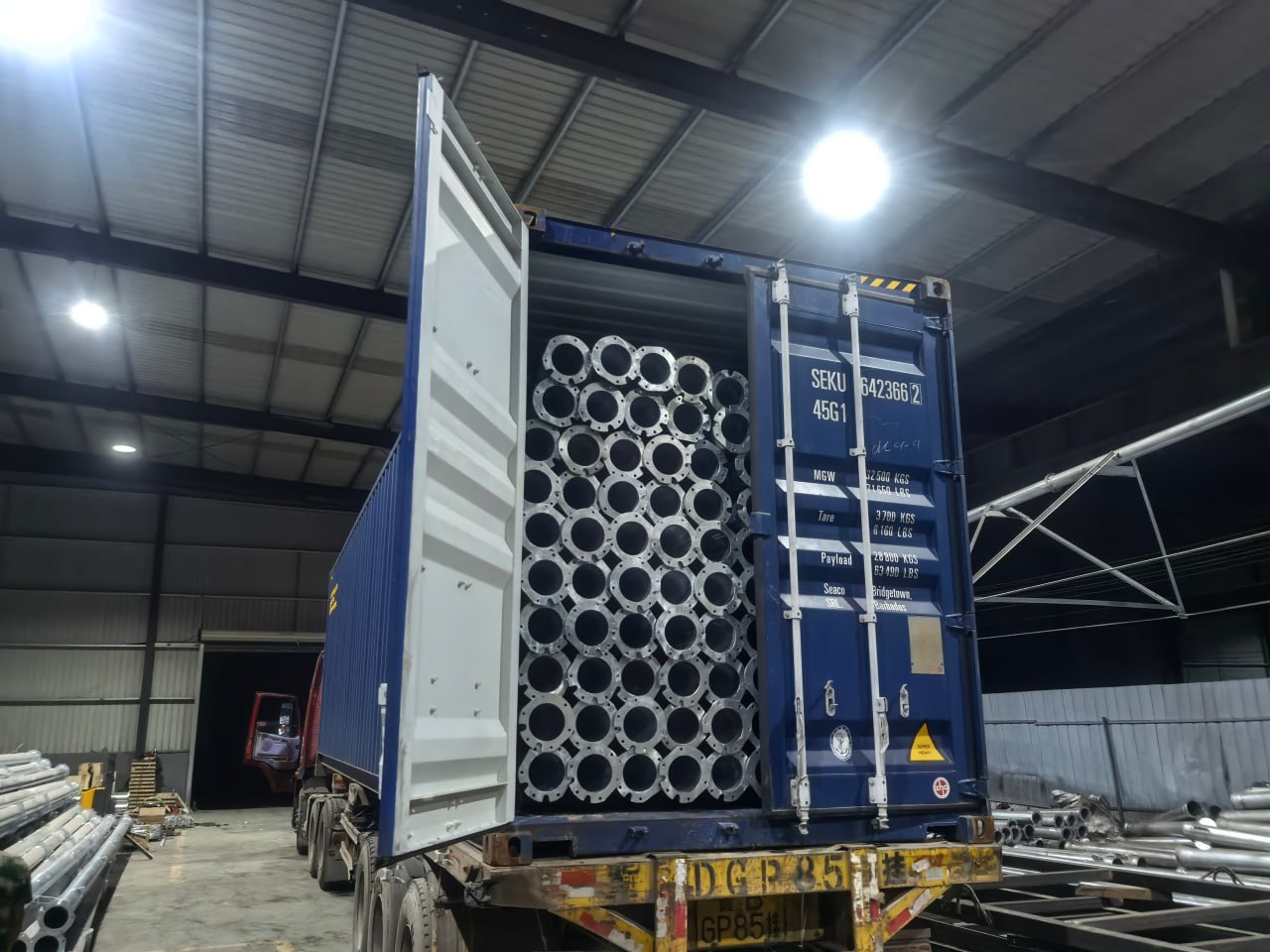

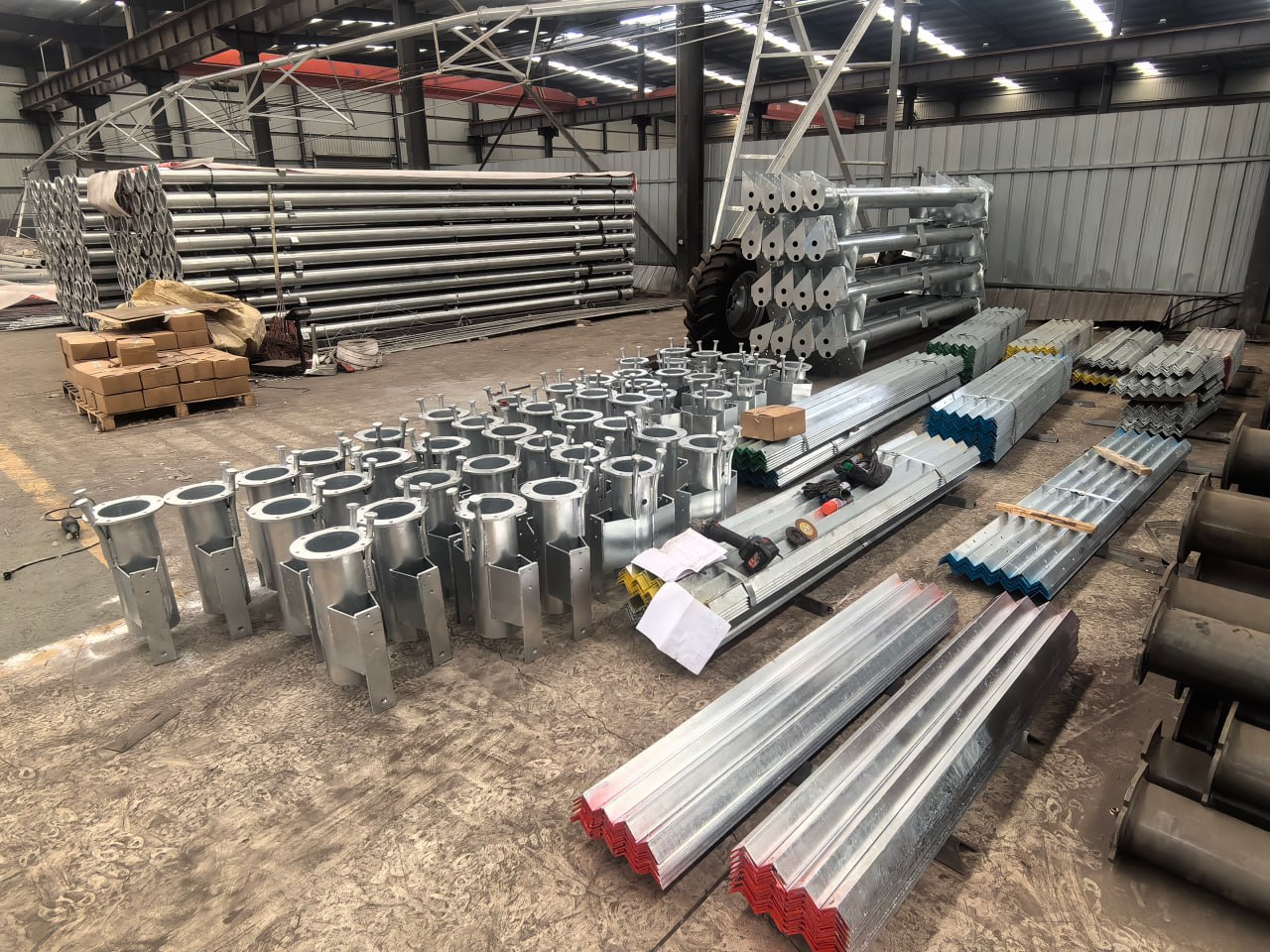

Work Process & Global Logistics
From Raw Steel to System: Precision, Quality, and Global Delivery
Ready to Optimize Your Irrigation?
Transform your farm’s efficiency, save on energy and labor, and ensure the most uniform water distribution for your crops. Contact our sales and technology experts today to discuss a customized SHENGU center pivot system for your specific terrain and plot size.
